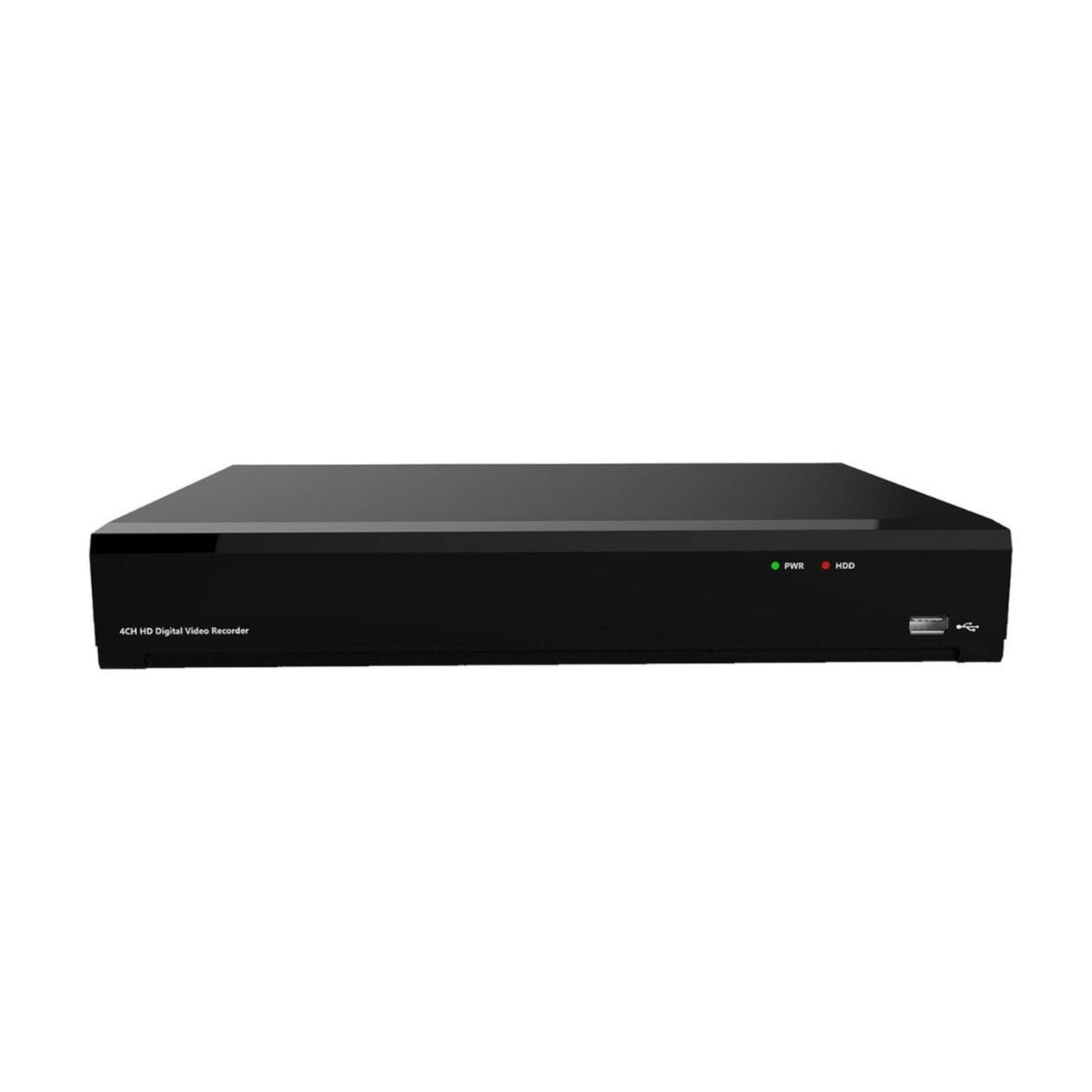

Gamut 4K Network Video Recorder – 4 or 8 Channels

Origin: This electronic product is manufactured overseas.

Bring compatible IP camera footage together with this Gamut network video recorder (NVR). Choose a 4-channel or 8-channel model for your multi-camera setup, with support for recording resolutions up to 4K (8MP) and remote access from a computer, smartphone or tablet.

Choose your channels and storage

• Channels: 4 or 8 IP camera channels, according to the model selected.
• Storage options: None, 2TB, 4TB, 6TB or 8TB.

The None option does not include a hard drive. A suitable hard drive is required to store recordings. A hard drive is included when you select a storage-capacity option.

Recording and local viewing

The recorder supports compatible IP cameras at resolutions up to 8MP (4K). You can view one 4K camera at a time in full resolution, with simultaneous playback of up to four channels subject to the selected recording resolution and recorder capacity.

Connect a suitable display using the HDMI or VGA output. HDMI supports display resolutions up to 3840 × 2160, while VGA supports up to 1920 × 1080. Recorded detail depends on the connected cameras, configuration and available bandwidth.

Network access and notifications

Connect the recorder to your network for remote viewing using a web browser or RXCamView on iOS and Android. Motion detection has sensitivity levels 1–8. Video-loss and event notifications include beep, email and app push options.

The recorder is designed for compatible IP cameras, not direct analogue RCA or coax camera connections. PoE (Power over Ethernet) camera connectivity is listed for the range; check the selected model's port layout when planning your installation.

Playback and controls

• Fast forward and rewind: 2×, 4×, 8× and 16×
• Slow playback: 1/2×, 1/4×, 1/8× and 1/16×
• Maximum simultaneous playback: four channels, subject to configuration
• Local interface: UI 5.0
• Audio compression: G.711a

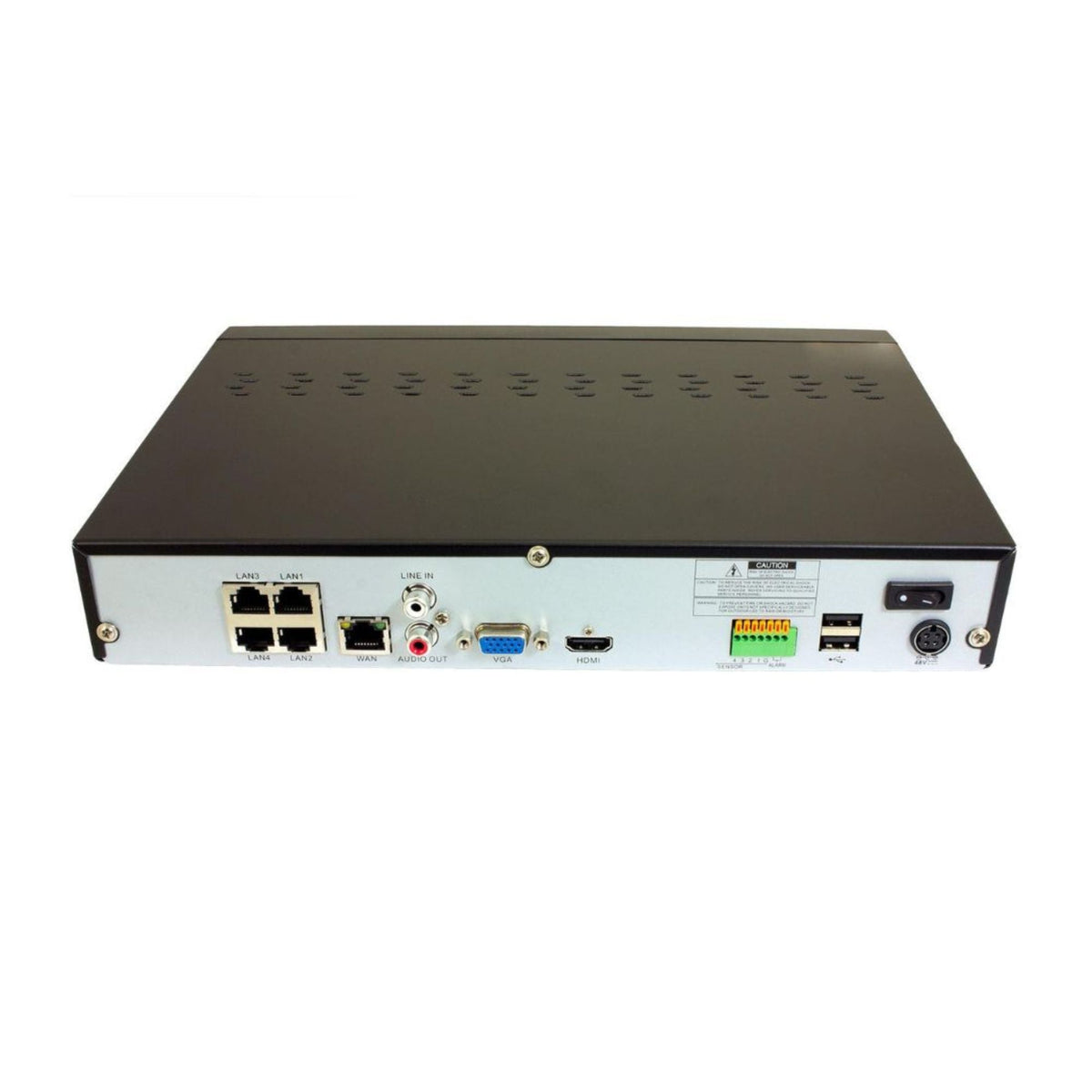

Connections and general specifications

• Supported camera resolutions: 8MP, 5MP, 3MP, 2MP (1080p), 1.3MP (960p) and 1MP (720p)
• Recording bandwidth: input 50Mbps; output 64Mbps
• HDMI output: 1, up to 3840 × 2160
• VGA output: 1, up to 1920 × 1080
• Network connection: RJ45, 10/100 Base-T
• USB: one front USB 2.0 port and one rear USB 2.0 port
• Audio output: 1
• eSATA: not supported
• Dimensions (W × D × H): 300 × 227 × 53mm
• Operating temperature: 0°C to +40°C
• Operating humidity: below 90% RH

What's included

• 1 Gamut HD IP NVR in the selected 4-channel or 8-channel model
• UK mains power supply
• USB mouse
• English setup instructions
• Hard drive in the selected capacity, unless None is selected

Cameras and a display monitor are not included.
